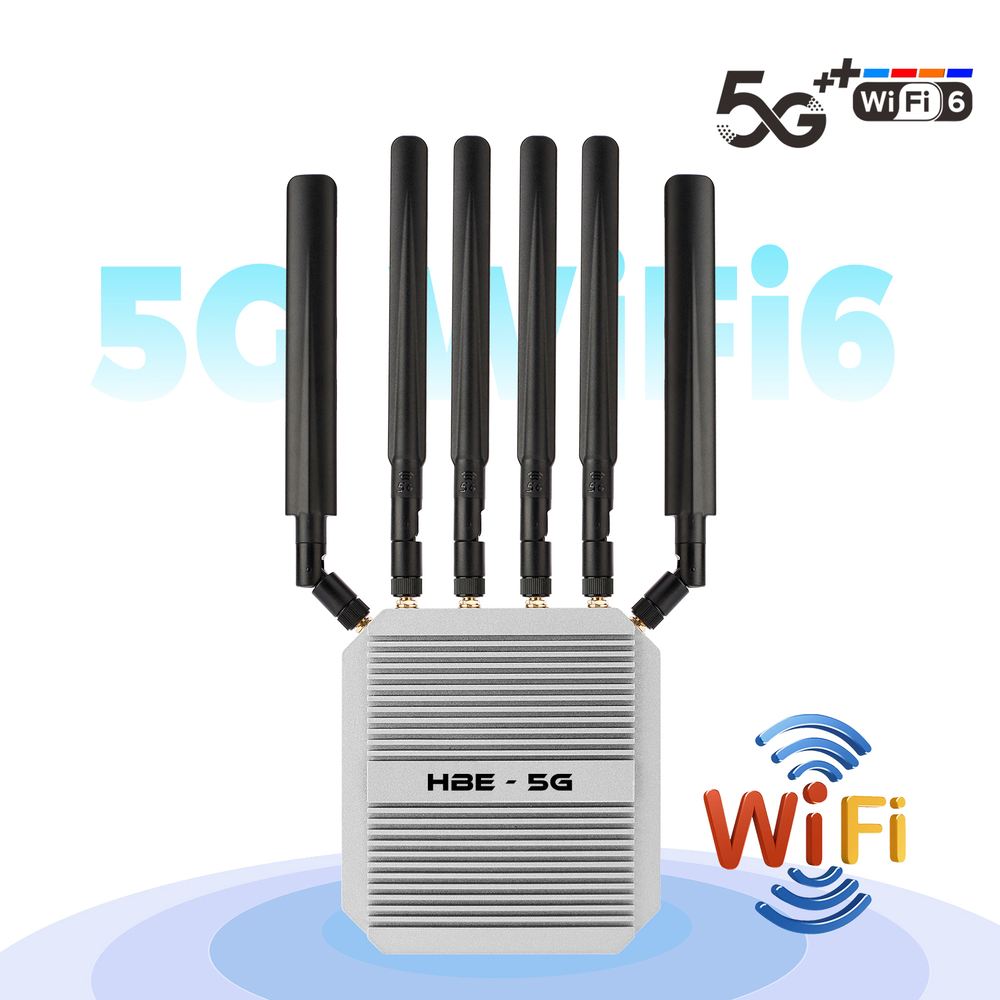

HBE-5G Outdoor Router — 5G Wi-Fi 6 outdoor CPE with six high-gain antennas

HBE-5G Outdoor Router

Outdoor 5G NR SA/NSA Wi-Fi 6 CPE Router with Dual SIM Card Slots

Overview

The 5G Outdoor CPE Router is designed for outdoor installation, making it easier to receive 5G/4G signals even in rural areas with weak cellular coverage.

The 5G Smart Dual SIM Router System (CPE) is built on a new embedded platform designed to meet growing mobile connectivity demands and deliver exceptionally fast speeds.

The CPE supports both NSA and SA modes and is compatible with network types worldwide, enabling simple plug-and-play setup. Enjoy ultra-fast broadband connectivity from virtually anywhere.

Designed for outdoor 5G use, the router features an IP67 waterproof rating, a sleek appearance, and flexible installation options. It can be mounted on a wall or attached to a pole.

  • IP67 waterproof
  • Wi-Fi 6 · AC3000
  • Dual SIM
  • 5G NR NSA/SA
  • Up to 2.5 Gbps
  • Wall or pole mount
Buy Now

Key Features

IP67 waterproof

Rated for sun, snow, rain and thunderstorms — built to sit outside where the signal actually is.

5G NR NSA/SA, Sub-6 GHz

3GPP Release 16 NSA/SA operation with 4×4 MIMO downlink and worldwide band coverage.

Dual-band Wi-Fi 6

2.4 GHz at 600 Mbps and 5.8 GHz at 2400 Mbps, with six high-gain antennas.

Wall or pole mount

A sleek metal case with flexible installation — mount it on a wall or strap it to a pole.

Technical Specifications

HBE-5G Outdoor Router
Model
  • HBE-5G Outdoor Router
CPU
  • SDX75
Wi-Fi Frequency
  • 2.4G
Wi-Fi Standard
  • 2.4G: 802.11b/g/n/ax
  • 5.8G: 802.11b/g/n/ac/ax
Wi-Fi
  • 2.4GHz: 600Mbps
  • 5.8G: 2400Mbps
5G NR
  • 3GPP Release 16 NSA/SA operation, Sub-6 GHz
5G Network Mode
  • NSA/SA
5G/4G Data Rate
  • 5G SA Transmission Speed: 2.1Gbps/900Mbps (up to ISPs)
  • 5G NSA Transmission Speed: 2.5Gbps/650Mbps (up to ISPs)
  • LTE: Down 1.0 Gbps; UP 200 Mbps
5G Frequency Bands
  • 5G NR NSA
    • n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
  • 5G NR SA
    • n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
  • MIMO
    • Downlink: 4×4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79
4G & 3G Frequency Bands
  • Downlink Cat 19 / Uplink Cat 18
  • LTE-FDD
    • B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
  • LTE-TDD
    • B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
  • MIMO
    • DL: 4×4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/B29/B30/B66/B41/B42/B43/B48/B71
  • WCDMA
    • B1/ 2/ 4/ 5/ 8/ 19
Modulation Mode
  • 5G
    • GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM
  • Wi-Fi
    • 1024-QAM / OFDMA
Dimension
  • 145 × 130 × 45 mm
Interface
  • 1 × 10/100M/1000/2500 LAN
  • 1 Reset button
  • 2 × SIM card slots (4FF SIM card, supports SIM/USIM/UIM, standard 6-pin SIM card interface, supports 3V and 1.8V SIM cards: internal)
Reset
  • Long press 10 seconds to restore the factory settings.
LED Indicator
  • Battery Power, RF Signal, SIM Signals, System Signal
Power Consumption
  • < 24 W (PoE 48V/1A)
Environment
  • Operating temperature: -20°C ~ +50°C
  • Storage temperature: -40°C ~ +70°C
  • Humidity: 5%–95% non-condensing
Weight
  • 1.8 kg (includes accessories in the box)

Package contents

  • One (1) 5G Outdoor CPE Router
  • One (1) 1 m Cat6 Ethernet cable
  • One (1) POE Power Supply
  • Quick Start Guide

A closer look

PoE, mounting, IP67 weatherproofing, antennas and coverage — the detail shots.

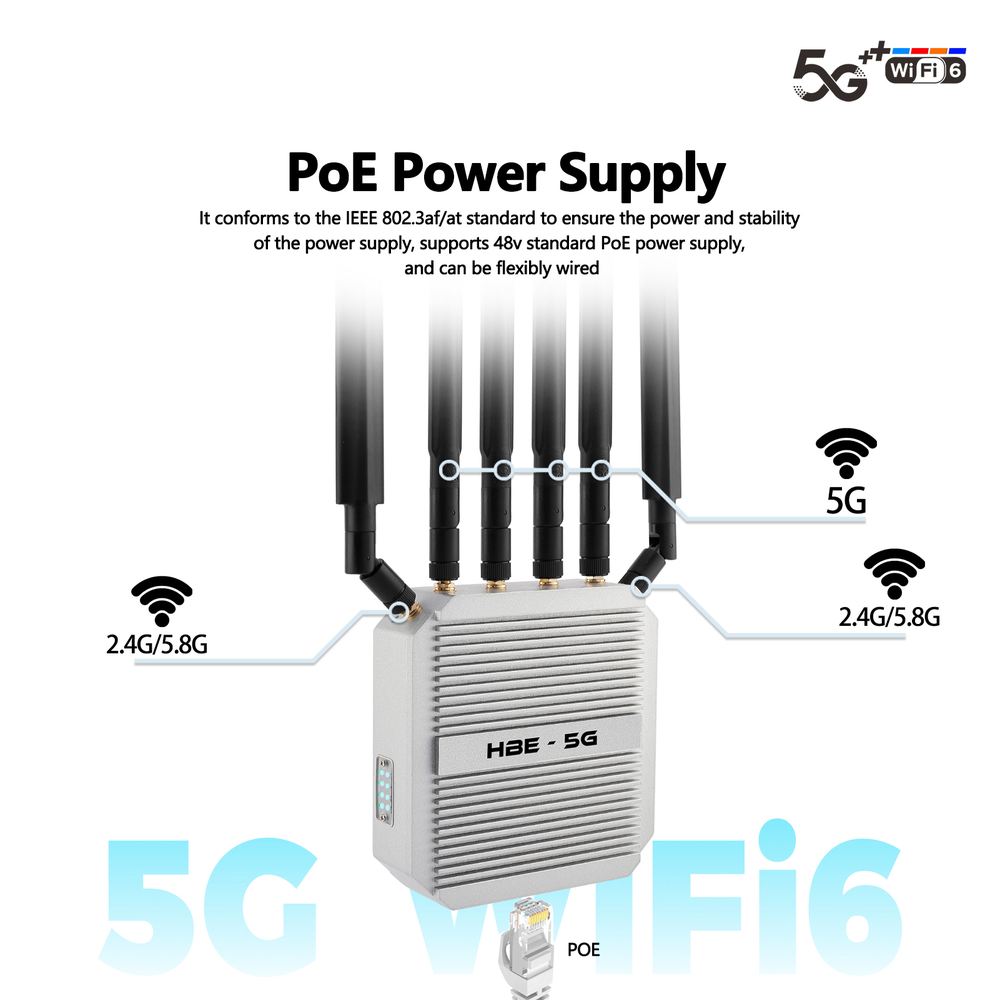

PoE power supply — IEEE 802.3af/at compliant, 48V standard PoE

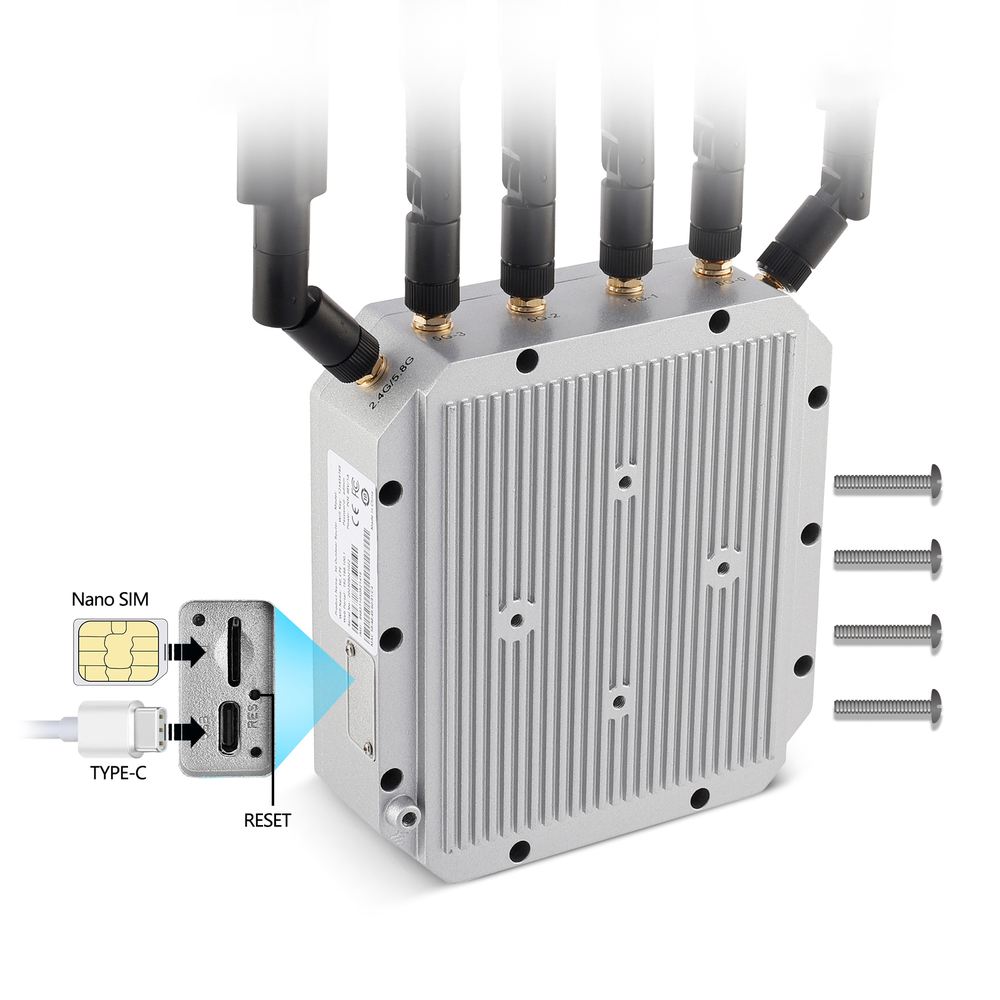

Rear view — nano-SIM slot, USB-C, reset button and pole-mount hardware

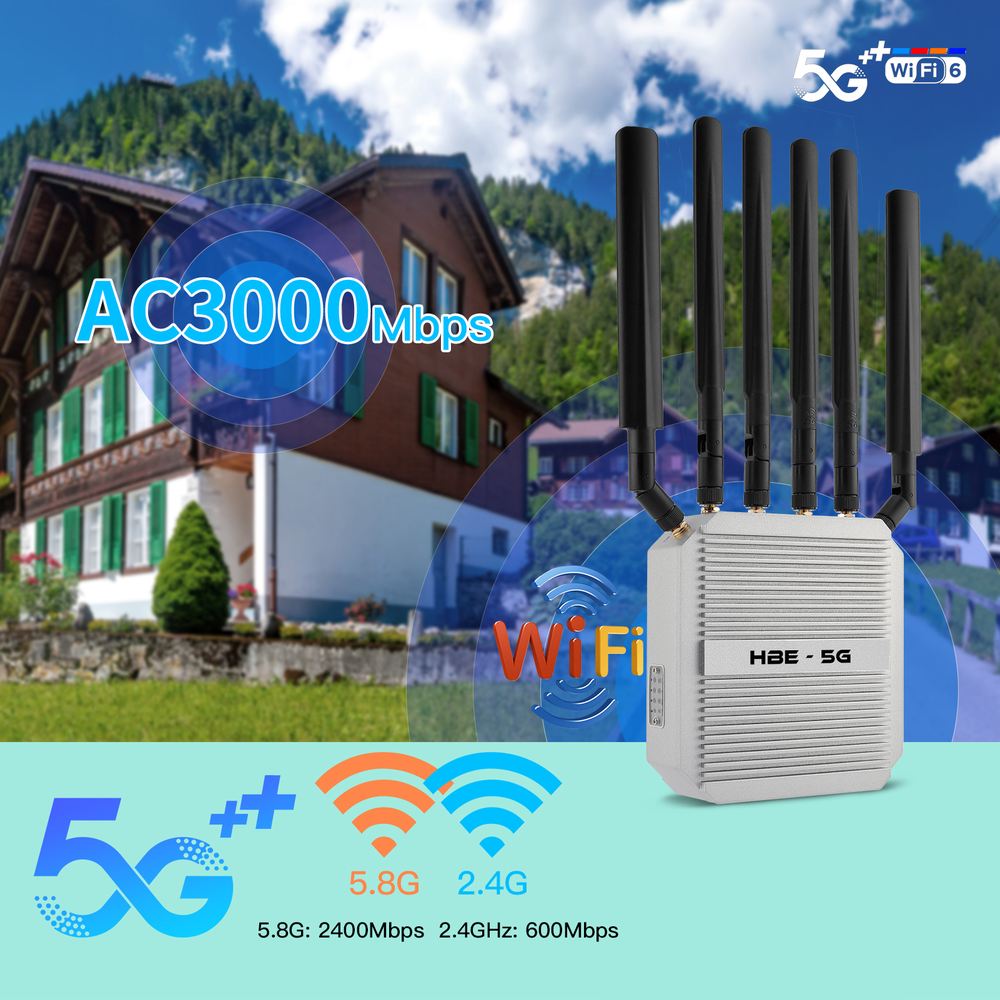

AC3000 Mbps — 5.8G 2400 Mbps and 2.4 GHz 600 Mbps

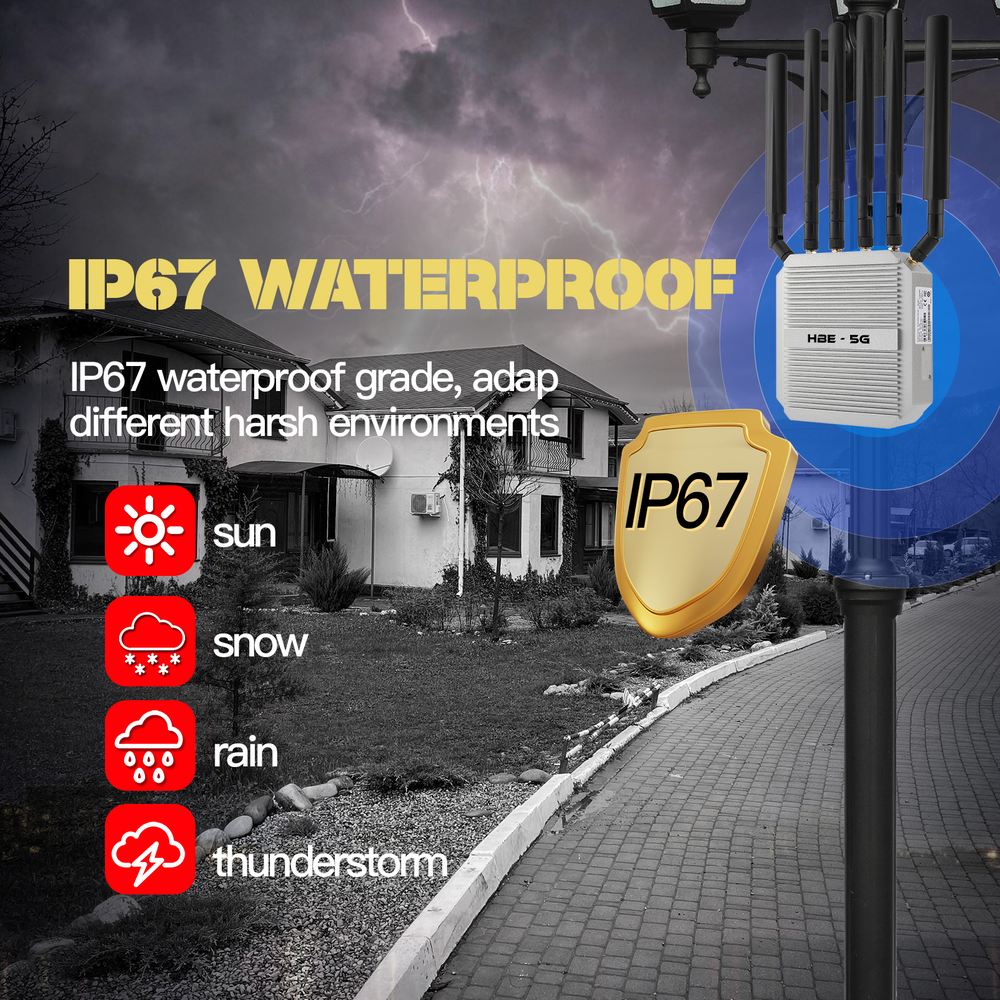

IP67 waterproof grade — sun, snow, rain and thunderstorm rated

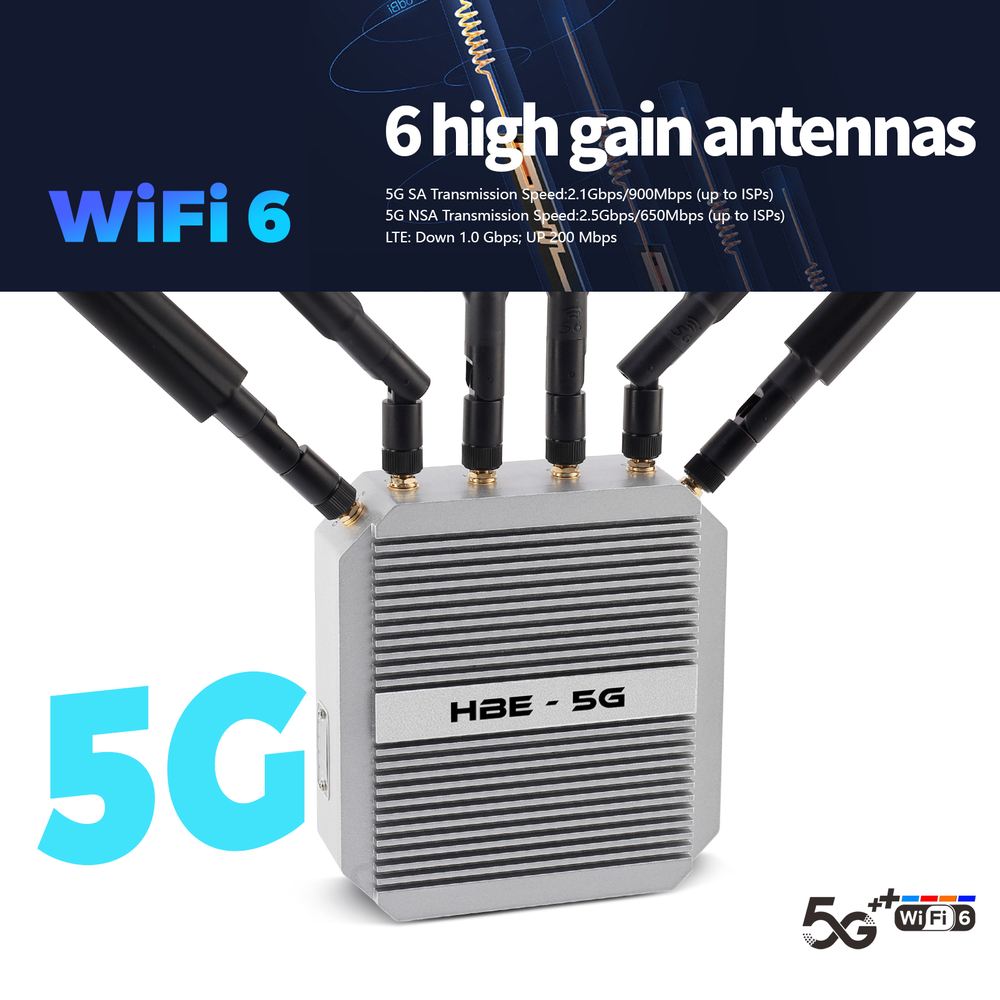

Six high-gain antennas with Wi-Fi 6

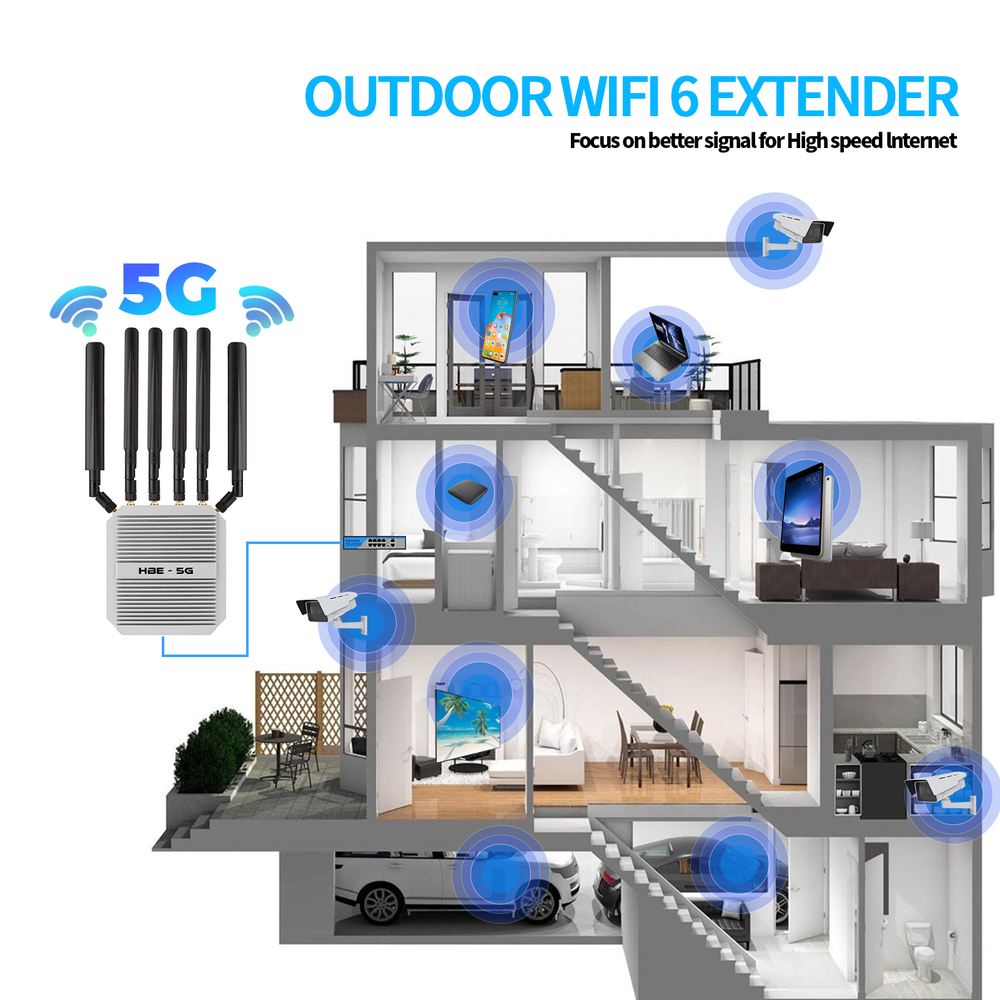

Outdoor Wi-Fi 6 extender — better signal for high-speed internet across the property

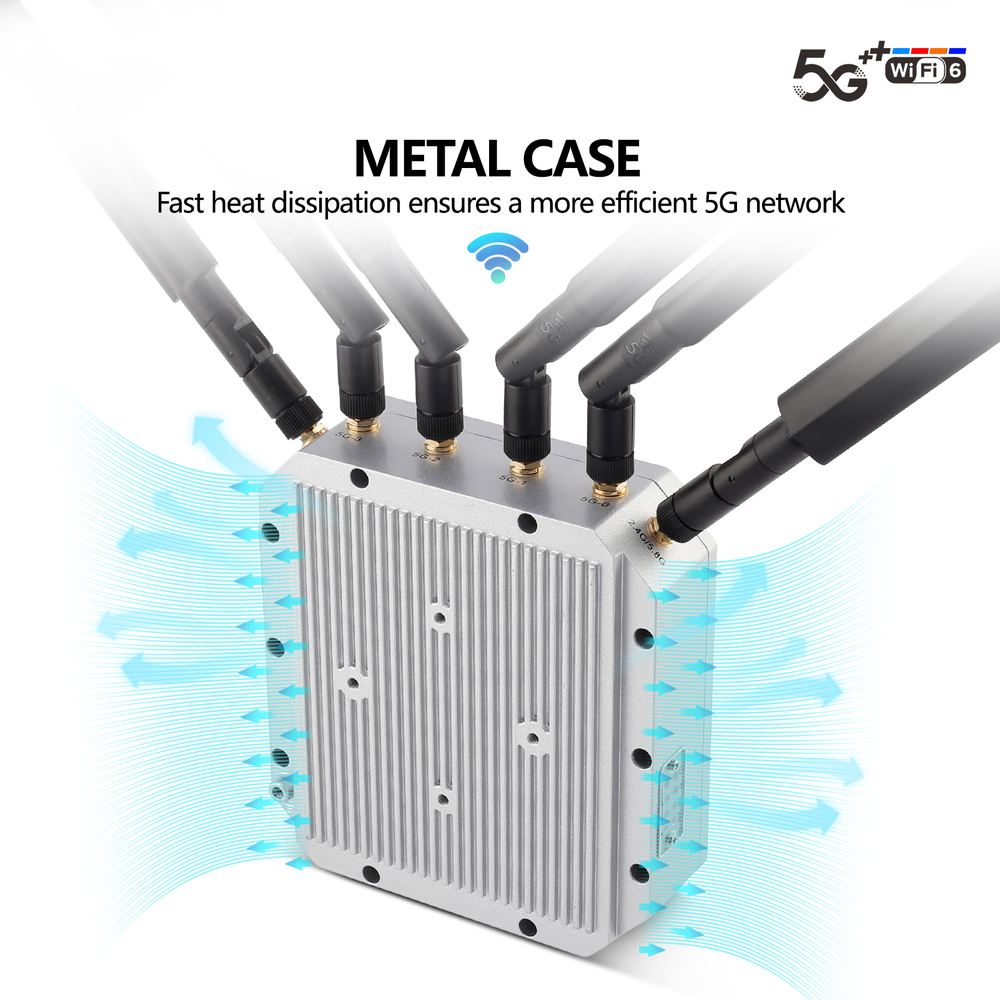

Metal case — fast heat dissipation for a more efficient 5G network

Specifications and product imagery supplied by HBE Yakabit. Throughput figures are theoretical maximums and depend on carrier network conditions.
